Алексей Коваль
Участник
Фотка РП тоже хорошая
.
.
Последнее редактирование:
Китай идет вперед
Алексей Коваль
Участник
alex1664
я тут
Там по тексту " оснащен управляемым в вертикальной плоскости вектором тяги"
То есть щелевые сопла как у американца.
Понятно, что кампилляция, но напечатано в официальной газете со ссылкой на блогера
Потому и здесь.Мне то он навеял переростка Су27. Скажем так, "гадкий утенок" повзрослел
Н-6 - крутая дверь по правому борту. Как в пассажире
П.С. Что то подумалось, а может отклонение вектора тяги в вертикальной плоскости для балансировки на разных режимах. Дозвук-сверхзвук, или прямоточный-экономичный, и с рассеиванием-малозаметный!?
Последнее редактирование:
Ведмедь
Микроавиатор.

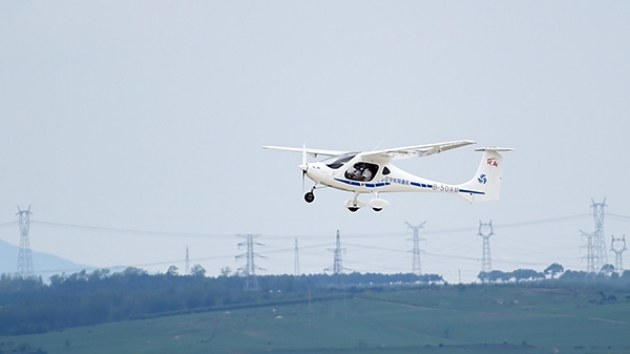

Yuneek E430 еще с 2009г. летает. Несколько самолетов зарегистрированы в США. Насколько успешен данный проект на сегодняшний день данных не нашел. http://www.techvesti.ru/node/1602
KURYER
Местный
China PLAAF 26 Specialised Division KJ500 30472 on Y-9, notice fairings on rear fuselage with ELINT antennae
KURYER
Местный
Житель Приморья осужден за попытку вывезти в Китай часть Ил-76
KURYER
Местный
Алексей, вот похоже кабина Н-6К ->Кабина, кстати, старого H-6. Не "K". Видимо, секрет
Seerndv
Старожил
Сыны Брахмапутры, однако, теснят китайцев ( или , вернее,их клонов) на традиционном поле дешёвых истребителей:
http://www.ndtv.com/india-news/sri-...t-in-indigenous-tejas-combat-aircraft-1396818
http://www.defensenews.com/story/de...terest-in-jf-17-signal-export-sales/77704460/
- Египет, Шри Ланка и Малайзия уже отвернулись от JF-17
http://www.ndtv.com/india-news/sri-...t-in-indigenous-tejas-combat-aircraft-1396818
http://www.defensenews.com/story/de...terest-in-jf-17-signal-export-sales/77704460/
- Египет, Шри Ланка и Малайзия уже отвернулись от JF-17
TEJAS IS THE AIRCRAFT OF TOMORROW AND JF-17 IS THE AIRCRAFT OF TODAY
FRIDAY, MAY 08, 2015 BY INDIANDEFENSE NEWS
Top: LCA Tejas - India's 4+ generation Combat Aircraft - Bottom: China's JF-17 Third generation Fighter Jet
An article in Sina's Chinese-language military news web portal compared the abilities of India's HAL Tejas Light Combat Aircraft and the FC-1 Xiaolong/JF-17 Thunder developed jointly by China and Pakistan.
Overview of the Aircraft
The HAL Tejas Light Combat Aircraft (LCA) was named by former Indian prime minister Atal Bihari Vajpayee. The development plan was approved by the Indian government in 1983. The government's requirements for the Tejas were to develop an all-weather supersonic LCA which could replace the MiG-21. Its main mission is to fight for control of airspace and to offer short-range support. The development of the Tejas wasn't a simple process, as it included a completely new engine, avionics and weapons systems, in line with global standards. The first test plane was unveiled on Nov. 17, 1995 and made its maiden flight on Jan. 4, 2001.
The design for the PAC JF-17 Thunder, also known as the FC-1 Xiaolong, began with the "Super 7" plan launched jointly by China and US aircraft maker Grumman to develop an upgraded version of the F-7, but Grumman left the project after sanctions were placed on China by the US in the wake of the Tiananmen Square Massacre in 1989. China and Pakistan subsequently signed a memorandum of understanding to design a new fighter together in 1995. The requirements for the fighter were that it make use of advanced technology, that it be a completely new design and that it approach the combat capabilities of third-generation fighters. It also needed to be light, cheap to produce and capable of carrying a large payload. The first plane took its maiden flight in 2003 and the third aircraft made a successful test flight in April of 2004. In the same year, the state-owned China National Aero-Technology Import & Export Corporation (CATIC) and the Pakistan Air Force signed a contract for the production of the FC-1 Xiaolong/JF-17 Thunder, the new designations of what had been the Super 7. On April 28, 2006, weapons systems and avionics were installed in the fourth aircraft and it made a successful test flight. The avionics systems were developed by China. On Sept. 10, 2006, the sixth JF-17 made its maiden flight.
Aerodynamic Configuration
There are clear differences in the shape of the two planes. The Xiaolong has horizontal tail-planes and a conventional aerodynamic structure, while the Tejas has no horizontal tail-planes on its triangular structure.
The lack of a (horizontal) tail is a unique feature of the Tejas, making it similar to the Dassault Mirage series of fighters. The plane also has a delta-wing configuration, which is the reverse of normal delta-wing fighters in that the angle of the sweep of the outer wing section is larger than the angle of the sweep of the inner wing section. The reverse configuration is normally used to balance supersonic and subsonic or transonic capabilities. The Tejas has an angle of incidence from the main axis of the wing, which gives the whole plane a larger dihedral force, improving its supersonic capabilities.
The Xiaolong has a trapezoid-shaped wing configuration, with a larger wing-aspect ratio and a smaller induced drag, therefore at high-altitude subsonic speed, the entire plane has a higher lift-drag ratio. The large wings that extend to the inlets on both sides of the plane's body not only improve the aircraft's lift during high-angle-of-attack flight but also help improve the maneuverability of the plane. The eddies created during high-angle-of-attack flight are also relatively stable, which reduces the chance of sudden drops in lift and improves the balance of the plane. It also improves the directivity of the nose of the plane in close-range combat.
In summary, in conventional air warfare, at an altitude of around 8,000 meters and a speed of Mach 0.8-1.2, the Xiaolong performs better in terms of acceleration, climb, stability and other combat capabilities. The Tejas' advantage lies in its low wing aspect ratio and its relatively low wave drag, which makes it superior to the Xiaolong in supersonic conditions.
Inlet Design
Both planes have intake cowls on both sides, but the Xiaolong's design is better as it is more functional, improves the plane's stealth capabilities and reduces its weight.
The Tejas uses the V-shaped air inlets typical of light fighters, the air inlets gather together towards the rear, sheltering the blades of the engine's axial compressor, preventing the scattering of radar, and adding to the craft's stealth capabilities. The oval air intakes are similar to the F/A-18C/D Hornet, with a diverter structure around them. All in all the design is in line with convention and has not shown much innovation.
The Xiaolong's air intake design is a little more imaginative and more advanced. It uses a diverterless supersonic inlet (DSI), scrapping the diverter structure used around the air intakes, as well as the air bleed and air bypass structures of most conventional supersonic aircraft. Through use of a three-dimensional compression surface to divert the boundary layer airflow at high subsonic and supersonic speeds, there is no longer a need for supplementary air inlets or bleed doors. This has the effect of lightening the structure, reducing drag and radar return. The air inlets are forward sweeping in a ramp formation, which reduces wave drag or surface interference.
Materials
As the Xiaolong was developed exclusively for export, to control costs, its body is mainly constructed with aluminum alloy as opposed to more popular composite material. The Tejas, however, has put an emphasis on reducing weight, and so it has used a lot of composite material. Forty-five percent of the plane's total weight is comprised of composite materials, including the fuselage, its vertical tailfin, the skin, the spars and the ribs of the wings, the elevons, the rudder, the air brakes and the landing gear doors. This cuts the plane's empty weight by 5.5 tons, making it almost 1 ton lighter than the Xiaolong, which means it can carry more fuel and a heavier load. The plane has a cargo-internal fuel ratio of around 30%, which improves its combat abilities.
Propulsion Systems
Although the Tejas' F414 engine is superior in terms of functionality, durability and life span to the Xiaolong's RD93 engine, it is also more expensive.
The choice of an engine has been problematic in the development of both aircraft. Those developing the Xiaolong had the choice of the commonly used F404, Pratt & Whitney's PW1216, the Turbo-Union RB199, the Snecma M88 and the Russian RD33. After considering different parameters, such as the combat radius, external storage and flexibility, they chose the RD-93 afterburning turbofan due to its low fuel uptake and its reasonable price.
The RD-93 is a variant of the RD-33 developed specifically for the Xiaolong, the main changes being the repositioning of the gearbox along the bottom of the engine casing and its mechanical turbine control. It employs a four-stage fan and nine high pressure stage compressor, with military thrust of 50 kiloNewtons (kN) and 81.3 kN thrust with afterburner, an augmented thrust ratio of 1.628, an overall pressure ratio of 21:1, a bypass ratio of 0.48:1, a normal gross takeoff weight of 9.1 tons and a thrust-to-weight ratio of 1, which gives it a longer range and better flying and propulsion capabilities.
The original plan for the LCA Tejas was that it would be fitted with the GTRE GTX-35VS Kaveri turbofan engine, but the development of the engine ran into a hitch, so they had to adopt the F414 instead. The engine was developed on the basis of the General Electric F404 and has an axial compressor with three fan and seven compressor stages and a turbine with one low-pressure and one high-pressure stage. Compared with the F404, the F414 has augmented thrust by 35%, pushing it to 60 kN military thrust and 98 kN with afterburner. Its thrust-weight ratio has been pushed to 9:1. India purchased the custom-made F414-GE-INS5 model, which has similar capabilities to the F414-GE-400, with a fully digital control system, more advanced than the RD-93's mechanical turbine control, making it quicker to react and more accurate.
The F414 engine has an advantage over the RD-93 engine, as its technology is more advanced; it has greater thrust and is more reliable. The RD-93 was designed in the 1970s and is a little past its best in terms of design, but it does offer more stability, a better price and a high quality-price ratio. However, the Xiaolong will likely adopt the Chinese WS-13 engine in the future. The WS-13 is an improved version of the RD-93 engine, with a better design and more attention to materials and details in its production. It also uses the full authority digital engine control (FADEC) system, which creates the possibility that it may be smaller than the F-414.
Avionics and Flight Control Systems
The LCA Tejas' avionics system has a top-down design and has made use of line-replaceable unit technology, ensuring smooth coordination and the minimum degree of interdependence. The Tejas' avionics system was designed by France, with three 1553B serial buses and two centralized 32-bit, high-throughput mission computers, including a communications subsystem, a mission subsystem, a self-defense system and a guidance and flight system. It uses ELTA's EL/M2032 radar system, which works in the X-band range, designed for both air-to-air and ground strike missions. It is effective within a range of 37-75 km.
The Xiaolong's avionics also have a top-down design, with an onboard computer and a 1553B serial bus at the center, integrating several systems, including the cockpit display and control system, task management systems and fire control systems. It is equipped with autonomous navigation technology and can attack land, air and sea targets, tracking while scanning. If the users can afford it, it can also be equipped with globally competitive avionics systems. It can be equipped with the KLJ-7 X-band fire and control radar, for example, which has 14 air-to-air and air-to-ground modes, and can follow 10 targets while in track and scan mode. It can also unleash an attack at two targets simultaneously. Its mid-range guided missiles can also hit targets beyond visual range. For targets of 5 meters squared, its range in look-down search mode is 105 km and 85 km in look-down mode.
Chinese avionics have come a long way in recent years and even in comparison with the Western avionics system used in the LCA Tejas, it doesn't lose out in terms of capability and its search range is greater and functionality greater than that of the Tejas.
Flight Control Systems
The flight system of the Tejas has a more complicated origin. Originally the aircraft was set to be equipped with a FADEC system developed jointly by Lockheed Martin and India, however, an Indian nuclear test led to sanctions being implemented against the country, ending the US-Indian cooperative endeavor. India then looked to Russian aircraft manufacturer Mikoyan and Moscow Air Production Organization for help, until the sanctions were revoked in 2001. India then ordered actuators from London-based BAE Systems, which were handed over in 2003. Then Lockheed Martin joined the development project once again. This lengthy process slowed down the entire development of the aircraft. Overall, the core parts of the system were completed by Lockheed Martin, although this information has yet to be released to the public. The Indian media have reported that the flight control system is a match for the F-16C/D Fighting Falcon's relaxed static stability/fly-by-wire flight control system.
The Xiaolong's flight control systems make use of a longitudinal FADEC system, with two fly-by-wire back-up systems. The FADEC system improves stability across the yaw and roll axis. It has overcome a few flaws in its aerodynamics to allow for more maneuverability. It is also relatively low in price.
Combat Ability
There is no real competition between the two aircraft in terms of combat ability. The Xiaolong has already completely developed its combat capabilities, with the ability to fire radar-guided air-to-air SD-10 missiles, air-launched C-802AK anti-ship missiles and precision bombs. The LCA Tejas, on the other hand, has just entered service, so it hasn't developed its combat abilities as yet, so the only way to compare the two is to look at the weapons they will likely use and their weapon pylons.
Those behind both the Tejas and the Xiaolong demanded comprehensive combat capabilities for the two fighters, to allow them to use a diverse range of weaponry. The fixed weapon on both fighters is a double-barreled 23 mm aircraft gun. The difference between them is that the Tejas' gun is sourced from Russia, whereas the Xiaolong uses China's variant of the gun. The LCA has eight weapon pylons on the entire plane, with three under each wing, one under the central body of the plane, and one under the air inlets on the left side of the plane. This allows the plane to make use of a wide range of the weapon systems of the Indian Army. This includes mid and close-range air-to-air missiles, precision-guided weapons, air-to-surface (including anti-ship) missiles, conventional and retarded bombs, cluster bombs and unguided rockets. The pylons can carry a maximum weight of 4 tons. The Xiaolong has 7 external pylons, two at the tips of the wings, four under the wings and one on the belly of the fuselage. This allows it to carry the beyond-visual-range radar guided SD-10 missile and the PL-9 short-range, infrared-homing air-to-air missile, as well as air-to-surface missiles, such as anti-ship and anti-radiation missiles, laser-guided bombs, anti-runway penetration bombs and cluster bombs. It can also carry three high-capacity subsidiary oil tanks. It can carry a total of 3.6 tons externally.
The two fighters are aimed primarily at air-to-air combat, while still maintaining ground strike and anti-ship attack capabilities. The Xiaolong will likely carry two PL-5EII air-to-air homing missiles, two SD-10 mid-range air-to-air missiles and two or three subsidiary oil tanks in its standard configuration. When engaging in beyond-visual range combat, it will likely carry four SD-10 missiles. The LCA Tejas will likely be equipped with the Israeli Python-4 air-to-air missile and the Derby medium-range active radar homing missile. The Python-4 approaches the PL-5EII in terms of its capabilities, but the range of the Derby missile is a lot shorter than that of the SD-10, so the Xiaolong has the advantage in terms of beyond visual range combat.
Overall, the LCA Tejas and the Xiaolong are matched in terms of their weapons pylons and as India's own weapon production abilities are quite limited, the LCA Tejas makes use of mainly Western and Russian advanced weapon systems, which makes for a scattered weapon set, which is more challenging for the pilot to manage. The Xiaolong's weapon systems and nacelle are all designed by China, which makes for more coordination between its weapons systems and a good price-to-quality ratio, which is a big advantage for the Xiaolong.
Conclusion
The Tejas is a light multirole fighter fit for the 21st century. It uses a lot of new technology and innovation, such as its use of large amounts of composite materials, its advanced avionics system and its unique aerodynamic configuration. In terms of functionality, the LCA Tejas has good potential to be expanded into variants. For example, at a time when the air force version is yet to be commissioned widely, a ship-based version of the aircraft has already been released. The Xiaolong is a third-generation model designed for the international market. The use of off-the-shelf materials not only cuts costs but also reduces risks in the design process and improves the reliability of the aircraft. This will not make it the best aircraft, but rather a standard, cheap and reliable model for air-to-air combat. In summation, the Xiaolong is the aircraft of today and the Tejas is the aircraft of tomorrow.
A_Z
Старожил
"Не в этой жизни..." (с)
А что, они повернулись к индийскому ублюдку?
В Египте кислород JF-17 в своё время перекрыли наши - поскольку планировали поставлять туда МиГ-29. Сделано это было незатейливо: китайцам "намекнули", что о поставках РД-93 для своей экспортной машины в этом случае они могут просто забыть.
Полагаю, что в случае с Малайзией (куда наши надеются влезть с теми же МиГ-29) ситуация развивалась примерно по такому же сценарию.
Никакого отношения к индусам это не имеет. "Это наши, чисто еврейские разборки - гоям не понять" (х/ф "Ширли-мырли").
У автора статьи явно весеннее обострение. Обозвать машину, разработка которой началась 30+ лет назад, "самолётом завтрашнего дня" - это сильно.
Если только не подразумевать, что сегодня Tejas воевать ещё не в состоянии. Типа, может, завтра "научится".
На фоне широкой известности того факта, что ВВС Индии, мягко говоря, не в восторге от Tejas'а, шансы на его экспорт нулевые. Разве что Дели будет покупателям доплачивать...
Seerndv
Старожил
http://www.airwar.ru/enc/engines/f414.html
- посмотрел.
Я понял почему у вас на смайлике такое лицо печальное!
- посмотрел.
Я понял почему у вас на смайлике такое лицо печальное!
KURYER
Местный
Ещё одно интересное видео: Interior of Y-8X seen for the first time
Последнее редактирование:
Max_YYZ
Отобрали звание
а тем временем:
Посторонним В
Старожил
Max_YYZ, а скопипастить текст в спойлер не сможете? А то без подписки не пускают...
[HASHTAG]#автоудаление[/HASHTAG]
Alex72
72²
Посторонним В, на bmpd перевод есть, крайняя статья.
Seerndv
Старожил
Таки немного ещё за JF-17:
http://www.janes.com/article/59661/dsa-2016-pakistan-bullish-on-jf-17-sales
Исходник:
Истребитель JF-17 на выставке Paris Air Show 2015
фото IHS/Patrick Allen
Несмотря на громкие отказы потенциальных клиентов на закупки истребителей JF-17, Пакистан сохраняет оптимизм по их экспорту, сообщает «Военный Паритет» со ссылкой на janes.com (21 апреля).
Такое заявление было сделано в рамках выставки Defence Services Asia (DSA) 2016, проходящей в Малайзии. В декабре 2015 года один малазийский высокопоставленный чиновник заявил о возможном приобретении JF-17, но буквально на следующий день это заявление было опровергнуто министерством обороны. Тем не менее, представители Пакистанского авиастроительного комплекса (ПАК) заявили на выставке, что по-прежнему сохраняют оптимизм в отношении возможного малазийского контракта. Такая страна как Мьянма также широко преподносилась как возможный первый импортер этих самолетов. Сообщалось, что против экспорта этих истребителей активно выступает Индия.
Представители ПАК сообщили, что в будущем возможно оснащение истребителя более мощным вариантом ТРДДФ РД-33МК российского производства (тяга на форсаже 9400 кг) или китайским двигателем WS-13 (9000 кг). В настоящее время самолет оснащается ТРДДФ РД-93 с тягой 8700 кг.
Российские промышленные источники на выставке заявили, что расчетный срок службы китайского двигателя всего лишь 2000 часов против 4000 у РД-33МК.
Новый вариант JF-17 будет оснащен штангой дозаправки в воздухе, который сейчас создается в Китае. Пакистан имеет планы вооружить самолет новой китайской ПКР, созданной на базе гиперзвуковой ракеты «воздух-земля» СМ-400. Двухместный вариант самолета приступит к летным испытаниям в конце этого или в начале 2017 года.
Pakistani JF 17 Thunder North Thunder military exercises in Saudi Arabia 11 3 2016
http://forum.militaryparitet.com/viewtopic.php?pid=153615#p153615
http://www.janes.com/article/59661/dsa-2016-pakistan-bullish-on-jf-17-sales
